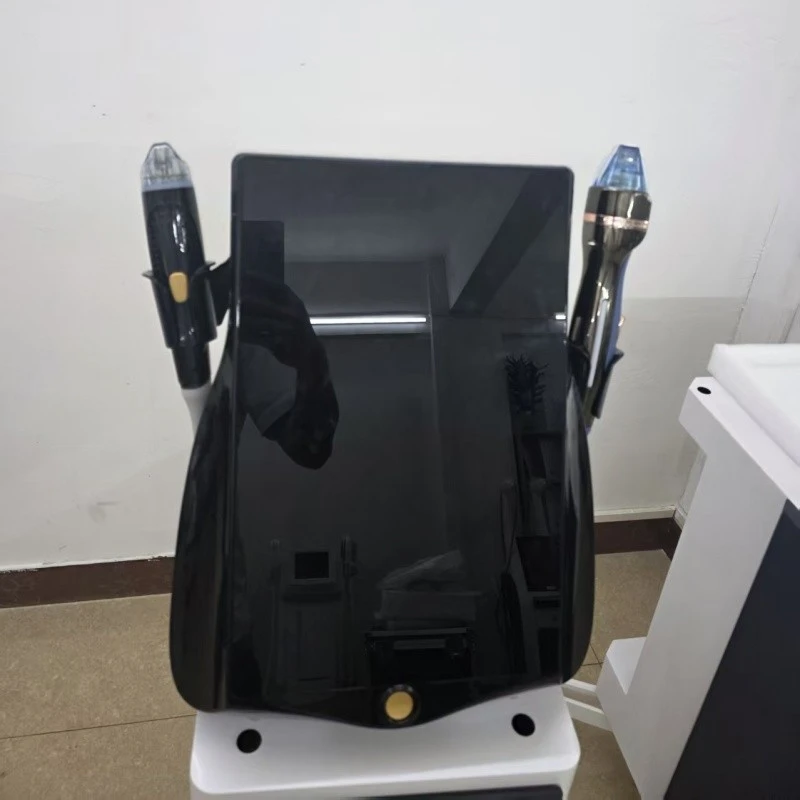

Cryo M9







Cryo M9 is a next-generation RF microneedling device designed for deep skin rejuvenation with maximum comfort. It combines insulated gold microneedles, dual-frequency RF energy (1MHz & 2MHz), multi-layer burst technology, and an integrated cryo cooling system to deliver effective skin remodeling while protecting the epidermis.

By synchronizing thermal stimulation and surface cooling, Cryo M9 achieves collagen regeneration, skin tightening, scar repair, and fat remodeling with reduced pain, minimal downtime, and enhanced safety.










1.Cryo Epidermal Protection
Real-time cooling protects the skin surface during treatment, significantly reducing thermal injury, post-inflammatory hyperpigmentation, and scarring risk-suitable for sensitive skin.


2.Wide Adjustable Depth (0.5–7 mm)
Precise penetration with thermal effect up to 8 mm, targeting epidermal repair, dermal collagen stimulation, and subcutaneous fat remodeling in a single system.



3.Dual-Frequency RF Synergy (1MHz + 2MHz)
1MHz RF activates deep tissues, while 2MHz RF focuses on mid-dermal collagen, enabling customizable, multi-layer treatment with enhanced results.


4.Exclusive Multi-Layer Burst Mode
Segmented subdermal heating delivers stable, uniform energy across multiple depths in one session, improving efficacy while reducing discomfort.


5.Smart Visualized Operation
Intelligent system with real-time display of mode, energy output, and cooling status ensures precise, controlled, and safe operation.


6.Disposable Needle Cartridges
Multiple cartridge options (12P, 25P, 41P, Nano) for different treatment areas; single-use design ensures hygiene and safety.


7.Compact & Portable Design
Lightweight system with aviation case, easy to transport and suitable for flexible clinical use.





Comparison Item	Cryo M9 RF Microneedling	Traditional RF Microneedling
Vacuum	No vacuum	With or without vacuum
Penetration Depth	0.5–7 mm adjustable (Thermal effect up to 8 mm)	0.3–2.5 mm or 0.5–3.5 mm
RF Output	1MHz, 2MHz single frequency or 1MHz + 2MHz dual-frequency	Single frequency only (1MHz or 2MHz)
Treatment Mode	Flexible modes: • Single-layer mode • Multi-layer burst mode (multiple depths in one shot)	No multi-layer mode; single-depth treatment, repeated passes required
Epidermal Protection	Cryo cooling + insulated needles Energy emitted only at needle tips Low pain, low burn & PIH risk	Mostly non-insulated needles; No cooling, higher risk of burns, pigmentation & pain
Handpiece Motor	Imported high-torque motor Stable penetration up to 7 mm	Lower motor power Limited depth (2.5–3.5 mm)
Needle Type	Insulated gold microneedles High safety, durable, no epidermal thermal damage	Non-insulated needles Higher risk of burns, bending or breakage
Cost & Quality	Higher material cost, stable quality Safer and more consistent results	Lower cost, quality varies Higher complication risk





1. Skin Cleansing & Anesthesia

Remove all metal accessories before treatment.

Cleanse and disinfect the skin thoroughly.

Shave excess hair in the treatment area if necessary.

Operators must wear disposable medical gloves.

Apply topical anesthetic evenly and cover with occlusive film for 30–45 minutes.

Remove anesthetic completely, disinfect the skin with 70% alcohol or povidone-iodine, then wipe with saline.
(Use of anesthetic depends on patient tolerance. Inform the practitioner of any anesthetic allergies.)



2. Device Setup

Check handpiece and cartridge function before use; ensure needles extend and retract normally and are not bent or damaged.

Select parameters based on skin condition and treatment goals.

Adjust RF energy to achieve the desired endpoint (mild erythema and edema). Reduce settings if the response is excessive.



3. Product Application

Apply treatment solutions or repair products to the target area prior to treatment to enhance transdermal delivery through microneedle-created channels.





1.Hold the handpiece perpendicular (90°) to the skin and apply firm pressure before activating energy delivery.

2.Use a stamp-and-lift technique; do not drag, rotate, or slide the handpiece.

3.Overlap adjacent treatment areas by 30–50%. Perform 1–2 passes only to avoid prolonged crusting.

4.Lift the handpiece only after energy delivery is complete and needles fully retract.

5. Apply additional passes only if treatment distribution is uneven.

6.For depths >3 mm, apply increased pressure to ensure proper coupling.

7. Reduce parameters in thin or bony areas (neck, forehead, nose bridge, cheekbones).

8.Avoid hairline, eyebrows, eyes, lips, blood vessels, and the Adam's apple.

9.Monitor skin response and patient comfort continuously; adjust parameters as needed.

10.Minor pinpoint bleeding is normal and can be wiped with sterile gauze.

11.Mild prickling or heat sensation is normal; discontinue treatment if abnormal discomfort occurs.





Normal Reactions

Mild heat, redness, and swelling immediately after treatment; typically subside within 1–3 hours (redness/swelling within 1–3 days).

Mild itching during healing is normal; do not scratch or rub.

Occasional acne flare-ups or bruising may occur and usually resolve within 7–15 days.



Post-Treatment Care

Apply medical-grade repair products (e.g., growth factors) twice daily for 7–10 days.

Use a medical facial mask once daily to enhance skin recovery.




12P - Suitable for hard-to-reach areas or curved and narrow areas, such as around the eyes and nose.

25P - Suitable for the face and neck.

41P - Suitable for body parts, for larger areas and deeper tissue treatment.

Nano - Suitable for infusion procedures, aiding in lifting and tightening effects.
